Maggies Centre, Kirkcaldy, Fife, Scotland, UK

Maggies Centre Fife

Maggie’s Fife, Kirkcaldy : Scottish Design Awards 2007 – Public Building Shortlist
Zaha Hadid Architects

Maggies Centre Fife – photos + article re this Kirkcaldy building

Maggies Centre Fife
Maggies Centre Fife : picture © adrian welch

Zaha Hadid Architects, London +44 (0)20 7253 5147

Images of this Zaha Hadid building on site, taken 29 Jan 2006

Zaha Hadid – Background

Zaha was born in Baghdad, Iraq, 1950
Mathematics degree at the American University, Beirut, 1971
Architecture degree at Architectural Association in London, 1972
Partner at OMA – the Office of Metropolitan Architecture – with founders Rem Koolhaas and Elia Zenghelis
Architecture tutor at Architectural Association in London

Zaha Hadid Architects established in London, 1979

Zaha Hadid Scotland : Maggie’s Fife

Maggies Fife Maggies Centre Fife Maggies Centre Fife Maggies Centre Kirkcaldy
Maggies Centre Kirkcaldy : images © adrian welch

First permanent building by Zaha Hadid in the UK with landscape by Gross.Max.

Zaha Hadid Architects
Maggie’s Centre, Victoria Hospital, Kirkcaldy

Schematic Design Stage:

Introduction

The Maggie’s Centre Fife is to be situated in the grounds of Victoria Hospital in Kirkcaldy. The architectural brief is to provide a centre for people with cancer, which is at once domestic in scale but unique in execution. This document outlines the project description for this project as part of the planning permission submission.

zaha hadid hadid architect zaha hadid architects kircaldy
Maggie Centre Fife : images from Zaha Hadid Architects 150802

Maggie’s Fife – Building Context

The proposed site is a unique situation within the hospital grounds. The specific site of the Maggie’s centre is in the northeastern section of a hollow to the southeast of the main entrance.
The hollow has a dramatic topography, which in combination with the overgrown foliage and trees creates a very natural environment in contrast to the rest of the hospital. The border of this area is naturally protected and enhanced by the trees along its edge. The positioning of the Maggie’s Centre in the NE corner makes it clearly visible from the hospital and the car park the centre. As a single storey construction, it is at eye level a continuation of the border that the trees already provide.
An overall objective for the design of Maggie’s Fife was that it is a transition between the two different types of spaces, the natural landscape and the car park / hospital. The intervention of building has been to exploit this location. As it exists now, there is no formal edge to this part of the hollow so various study models were used to explored how an edge could be developed which could transform itself into a building envelope and thus become a gateway to the landscape.

Maggie’s Fife – Volume & Landscape

Externally the submitted design is a play between the form a folding surface and a connecting ground slab. The folding surface articulates a directional emphasis of moving the visitor into a different space from the rest of the hospital grounds. This folded surface is articulated by cladding the visible roof and two opposing walls with the same material, a sheet cladding of corten steel. Making the remaining elevations a mix of translucent and clear glass reinforces the directional nature of this form.

The metal cladding is expressed clearly at the eaves to accentuate the continuity of the cladding from wall to roof. The large overhangs of the roof are used to extend the building into the landscape on both sides. So on the north side it extends to illustrate the entrance doors. On the south side it provides solar shading to the glass elevation and partially cover the terrace.

hadid kircaldy fife

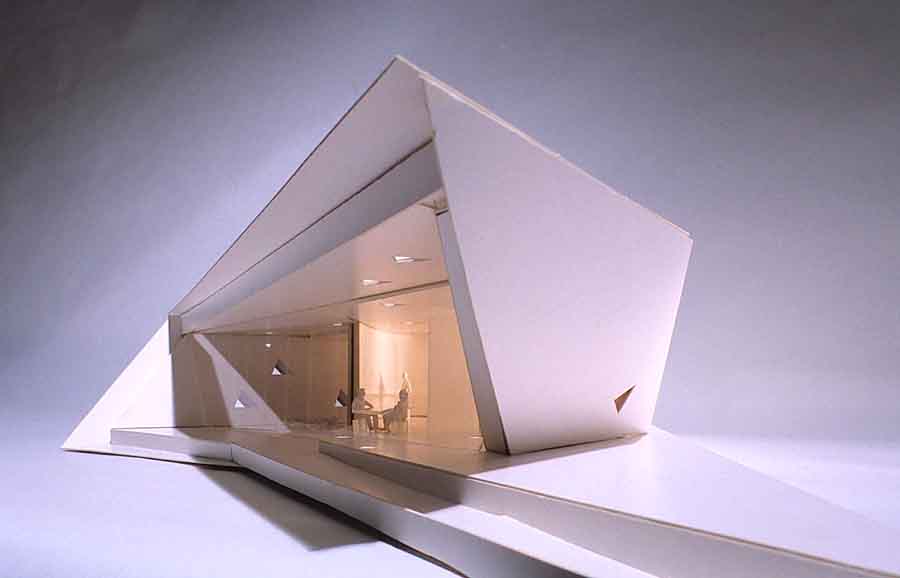

Maggie Centre image supplied by Zaha Hadid Architects 140104

Maggie’s Centre Fife sits on a concrete plinth slab, which connects it to the surrounding areas and landscaped areas. On the north side, the slab outlines the car parking before rising to the same level as the public entrance to Maggie’s Fife. The strong directional language and material contrasts of the slab to the tarmac should mark out clearly the entrance for the new visitor. Lighting will be incorporated to illustrate this at night. The area between the parking and existing trees will be landscaped with new trees planted to extend the area to the parking.
The slab continues along the eastern side separating the centre from the car park with a wall. The rising of the wall on this edge indicates the gradual separation of public space of the entrance to the private spaces of the terrace. It terminates by wrapping around the southern tip of the centre as a south-facing terrace. A concrete wall acts as a balustrade in this area. Where the terrace is in front of the centre a glass balustrade is used. The northern section of the terrace cantilevers off the sloping ground.

Maggie’s Fife – Program

Internally the arrangement of rooms is centered on an open plan kitchen. The cellular spaces are located to the north and east elevations. The offices are located on the north elevation with a direct view to the car park and the entrance. The rooms to the east need a more private nature and are as such seen externally as a semi opaque façade.
The entrance to Maggie’s Centre Fife is located at the corner underneath a roof overhang. A direct view exists from the entrance at the northeast through the central space of the kitchen to the south facing glass elevation. The view of a hidden landscape through this space is the intended first impression for the visitor upon entering the Maggie’s Centre.
The internal central space is kept as open and column free as possible. A ramp connects the main space to a lower platform, which a flexi-hall is situated. A system of shutters and sliding doors can seal this space off from the main space.
The southern facing façade is floor to ceiling glazing. There are windows and doors allowing direct access to the outside terrace. The extension of the roof beyond the glazing and terrace give a continuity between the inside / outside spaces. Throughout the spaces are scattered roof and wall triangular skylights similar to views, light and continuity of form into the space. The interior is intended to look like another fold inside the external fold. To contrast the exterior it will be primarily coloured linoleum. The linoleum will be used on all surfaces such as floor, wall and ceiling.

Maggie’s Fife – Catalyst Legacy

It is hoped that the centre is a catalyst for the future development of the hollow as a potential leisure area such as a sculptural park. As such its connection to the lowest level of the hollow may be the added at a later stage from the terrace area.

Maggie’s Centre Fife – text : JH / Zaha Hadid Architects 15 Aug 2002
